How is the block sized?

From the number of people eating at the same time, the number of sittings, and the length of the break, not from a floor area rule. These figures set seating capacity, counter length, kitchen area, extraction capacity, and drainage sizing together.

Why does food flow matter in a compact block?

Goods-in, storage, preparation, cooking, service, tray return, dishwashing, and waste removal form a one-way route so soiled items never cross clean ones. In a compact block that separation is harder to achieve and is exactly what an inspection examines.

What extraction is required over the cooking line?

Canopy sizing, extract rate, filtration, make-up air, duct routing, and fire damper provision are designed with the equipment schedule. Under-provision is the most common failure, because heat, smoke, and odour then move straight into the dining area.

How is grease and waste water handled?

Floor gullies, wash-down falls, correctly sized waste pipes, rodding access, and grease separation before discharge protect the site drainage. The connection point, separator sizing, and emptying regime should be agreed with the site drainage strategy.

Is the dining area comfortable when full?

Only if acoustics and ventilation are specified for the peak sitting. Hard cleanable surfaces reflect sound, so absorption has to be selected to work alongside the cleaning requirement, and cooling has to cope with equipment heat gain in a short window.

Can capacity be increased later?

Additional dining units or servery points can be added when the structural arrangement, circulation, escape routes, extraction, drainage, and utility capacity allow. Reserving that expansion edge in the first phase is far cheaper than reworking a kitchen already in service.

What should a cafeteria container quotation include?

A comparable quotation states headcount and sittings, unit arrangement and kitchen-to-dining ratio, equipment schedule and supply boundary, kitchen performance targets, site connections including grease provision, commissioning scope, and the commercial exclusions.

Containers

Modular Catering Facilities

Cafeteria Containers Sized From Headcount and Break Length

Q: Can the block obtain food hygiene approval?

It can be specified to meet the requirements at the location, with impervious cleanable finishes, coved junctions, sealed penetrations, temperature-controlled storage, and hand-washing at each work zone. Registration and inspection are carried out by the local authority, and the responsible party should be named.

Catering blocks planned from the number eating at once and the break window, with connected food flow, kitchen extraction, hygiene finishes, grease management, dining comfort, and fire provision.

Plan Your Cafeteria Block Discuss Your Catering Brief

Planning basis: People fed at once, sittings, break window, and menu type
Catering program: Pantry, preparation, cooking, counter, dining, wash, and waste
Delivery model: Production, transport, placement, equipment commissioning, handover

Dining blocks planned around the break

Cafeteria Containers Sized From Headcount and Break Length

A cafeteria container brings pantry, preparation, cooking, service counter, dining, dishwashing, and washbasin provision into one catering block. The design starts from how many people eat at the same time, in how many sittings, and how long the break actually lasts.

Beyond construction and mining camps, the same blocks serve schools and campuses, hospitals and care facilities, social complexes, and institutional sites. What changes between them is the menu, the service style, the hygiene regime, and the load the counter has to absorb in a short window.

Because these numbers determine seating, counter length, kitchen area, extraction capacity, and drainage sizing, they belong in the brief at project stage. A block sized after the camp layout is fixed usually ends up with a dining hall that fits and a servery that does not.

Sized from headcount at design stage

How many people eat at once, in how many sittings, and how long the break lasts are agreed while the project is still on paper, because those numbers set every other decision.

Complete catering sequence

Pantry, preparation, cooking, service counter, dining, dishwashing, and washbasin provision are planned as a connected sequence rather than assembled from separate units.

Moved with the project

A craneable block with terminated services can follow a programme from one phase to the next instead of being rebuilt at every location.

A connected catering sequence

Spaces Within a Cafeteria Container Block

Each area reflects the menu, the number eating at once, food safety separation, equipment loads, extraction, drainage, waste handling, and cleaning between services.

01
Goods-In and Pantry
Delivery access, checking, dry store, and cold storage positioned so stock never travels through the dining area.
02
Preparation Area
Separate preparation surfaces for raw and ready-to-eat items, dedicated sinks, and hand-washing provision at the point of work.
03

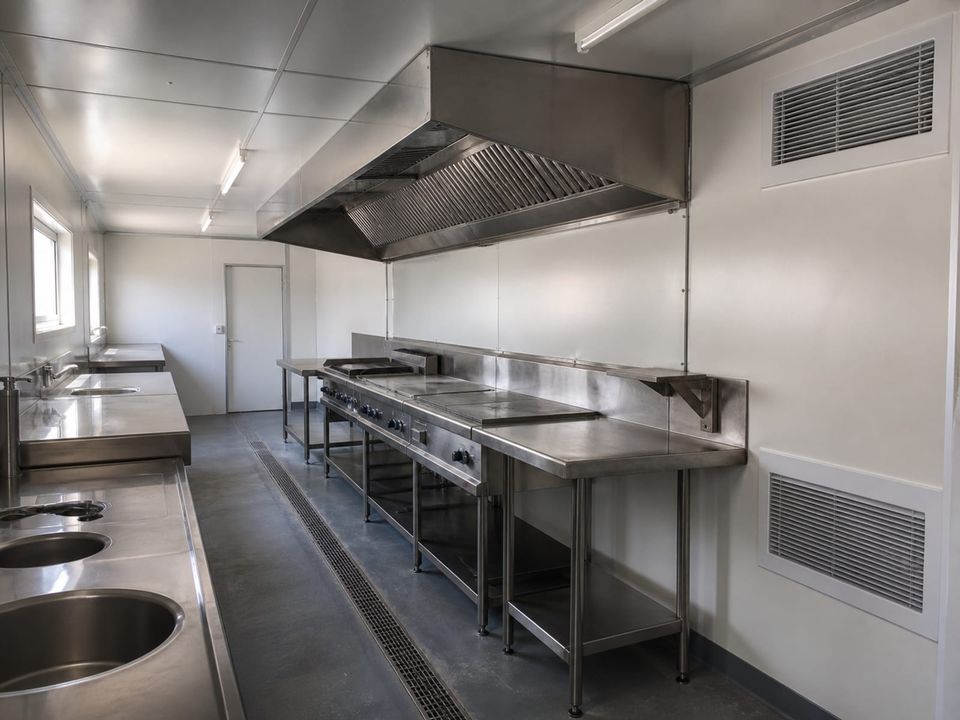

Cooking Line
Cooking equipment, gas or electric supply, extraction canopy, make-up air, fire suppression, and clearance for cleaning behind equipment.
04

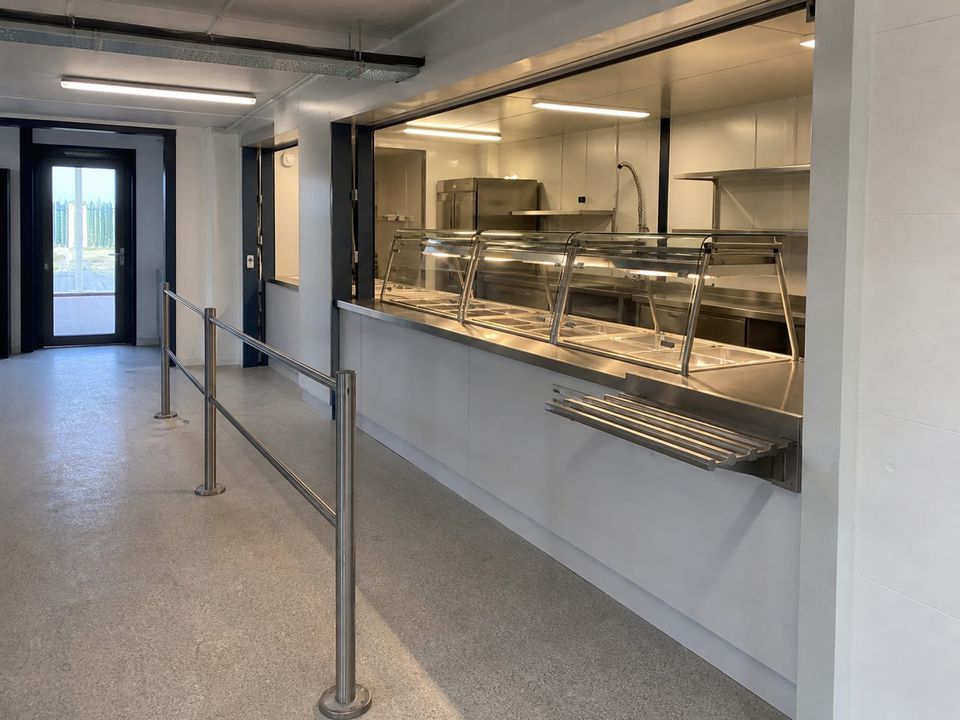

Service Counter
Hot and cold distribution, tray flow, counter length matched to the break window, and queue space clear of the dining seats.
05

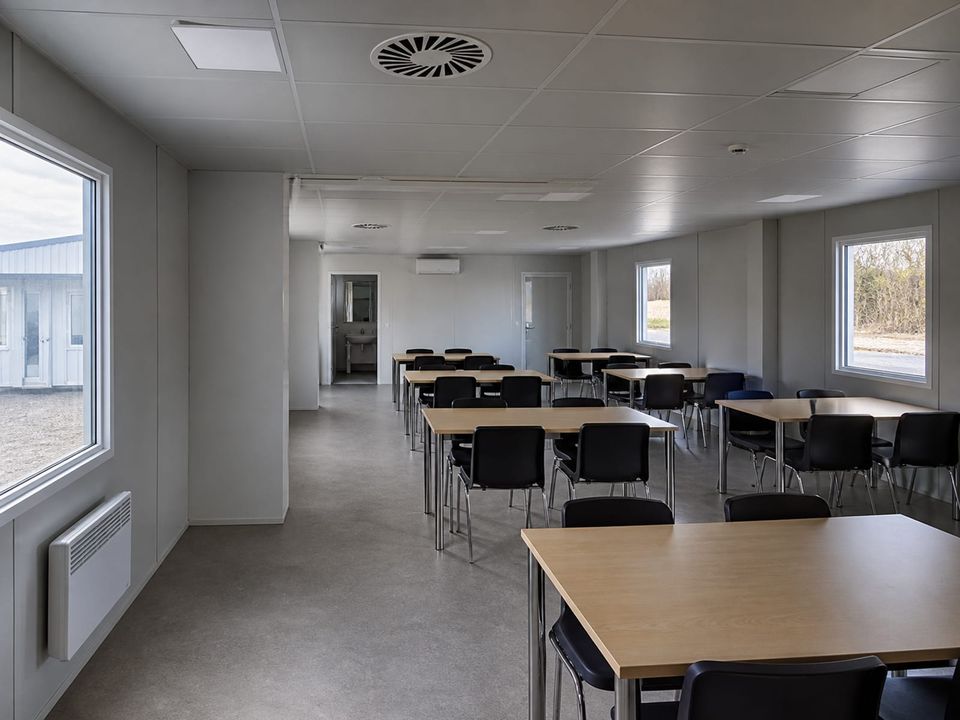

Dining Hall
Table layout for the number eating at once, circulation width, acoustics, ventilation, daylight, and accessible places.
06
Dishwashing
Tray return, scraping, wash line, drying, and clean crockery storage arranged so soiled items never cross the food line.
07
Washbasin Units
Hand-washing provision for diners at the entrance and for staff at each work zone, with soap, drying, and drainage.
08
Waste and Technical
Waste segregation and holding, grease management, chemical store, plant, and a removal route that avoids the dining area.

Table layout is set by the number eating at once, with circulation width, acoustics, ventilation, and accessible places planned around the peak sitting.

The cooking line depends on equipment layout, extraction canopy, make-up air, fire suppression, hygiene finishes, and cleaning clearance behind equipment.

Counter length is matched to the break window, because it is servery capacity rather than dining area that decides whether a queue forms.

Configuration before production

Agree Headcount and Food Flow Before the Block Is Laid Out

The brief should record how many people eat at once, the number of sittings, break window length, menu type, service style, staffing, and delivery frequency. These figures set seating capacity, counter length, kitchen area, equipment schedule, extraction capacity, and drainage sizing.

Food flow should be settled before the layout. Goods-in, storage, preparation, cooking, service, tray return, dishwashing, and waste removal form a one-way route so that soiled items never cross clean ones, and this separation is what an inspection actually examines.

Extraction, drainage, and grease management are the three services most often underestimated in a compact block. Canopy sizing, extract rate, make-up air paths, duct routing, floor gullies, wash-down falls, and grease separation before discharge should be designed alongside the equipment schedule rather than after it.

Hygiene approval belongs in the contract. Food service registration and inspection are carried out by the authority at the location, and the party responsible for obtaining them, along with the finishes and temperature control required to pass, should be named rather than assumed.

Whole-block performance

Hygiene, Extraction, and Throughput Together

A dining block that works every service depends on ventilation, hygiene finishes, food flow separation, drainage, dining comfort, and fire provision being planned as one package.

Ventilation over the cooking line

Canopy sizing, extract rate, filtration, make-up air, duct routing, and fire damper provision determine whether the kitchen is workable. Under-provision pushes heat, smoke, and odour straight into the dining area.

Hygiene and food safety

Impervious cleanable finishes, coved junctions, sealed penetrations, temperature-controlled storage, and hand-washing at each zone support the food safety regime the operator is inspected against.

Separated food flow

Goods-in, storage, preparation, cooking, service, tray return, washing, and waste form a one-way route. Where clean and soiled activities cross, the layout itself becomes the compliance problem.

Drainage and grease

Floor gullies, wash-down falls, correctly sized waste pipes, rodding access, and grease separation before discharge protect the site drainage and keep the operator compliant.

Dining comfort

A full dining hall with hard cleanable surfaces becomes loud immediately. Acoustic absorption, ventilation sized for the peak sitting, and cooling against equipment heat gain make the break usable.

Fire safety in catering

Suppression over the cooking line, separation from the dining area, interlocked gas shut-off where applicable, detection, escape provision for a densely occupied hall, and clear signage.

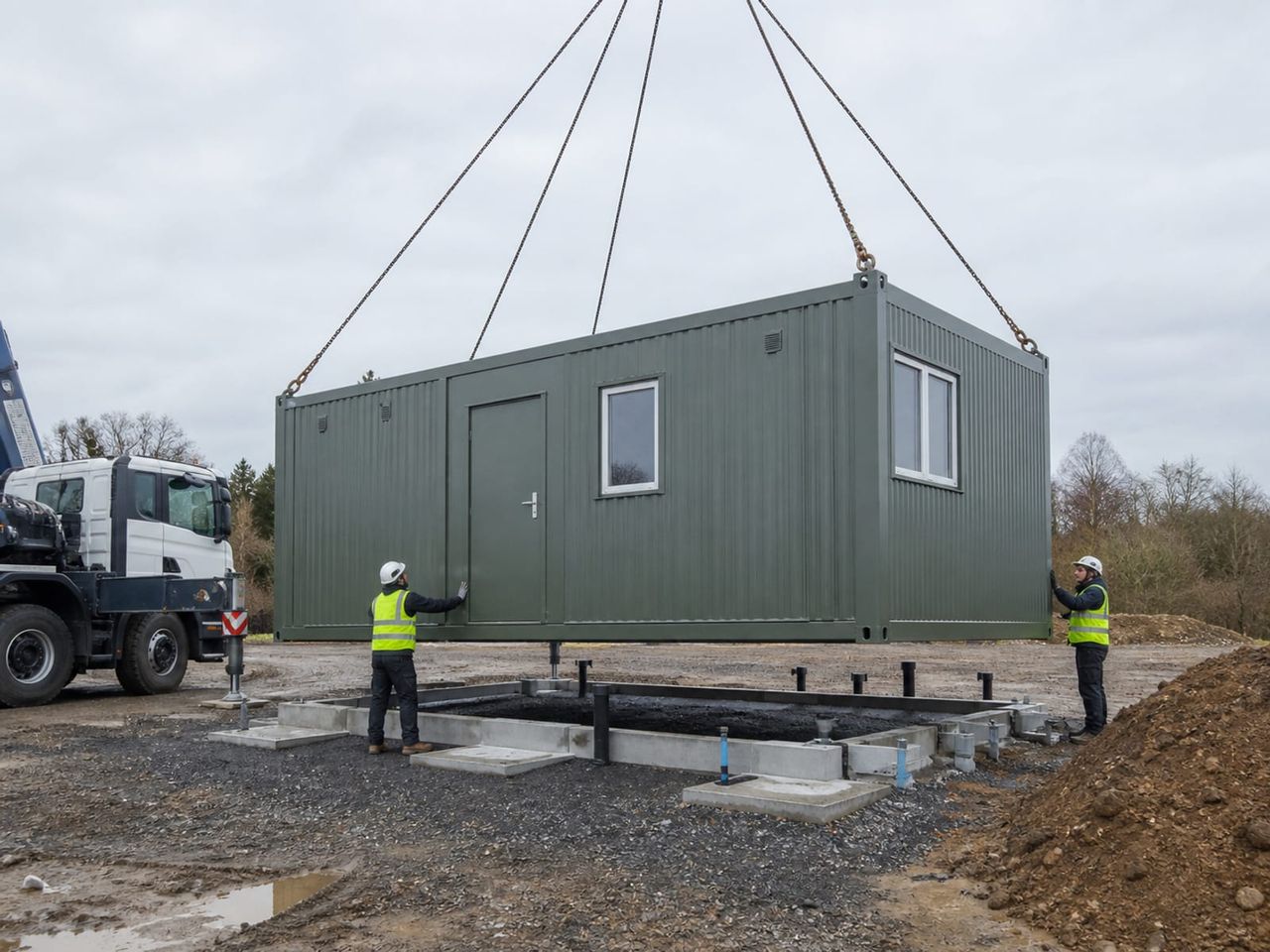

Installation planning should coordinate base preparation, lifting, unit connection, delivery access, water and drainage with grease provision, extraction, equipment commissioning, hygiene sign-off, and handover.

A comparable and complete catering scope

What Shapes a Cafeteria Container Quotation?

A meaningful quotation begins with an agreed headcount, sittings, equipment schedule, kitchen performance, site connections, and delivery brief. Compare proposals against the same service capacity rather than a block size and price.

01Catering model

People fed at once, number of sittings, break window length, menu type, service style, staffing, and delivery frequency.

02Unit arrangement

Number of units, kitchen-to-dining ratio, goods-in route, counter length, seating layout, escape routes, and expansion provision.

03Kitchen performance

Extraction, make-up air, cooling, hygiene finishes, grease management, fire suppression, drainage capacity, and lighting.

04Equipment scope

Cooking line, refrigeration, wash line, counters, power and gas loads, hot water demand, and the boundary with operator supply.

05Site and approvals

Location, base, delivery access, water, drainage and grease connection, gas or electric supply, permits, and hygiene registration.

06Interiors and furnishing

Partitions, ceilings, floors, doors, tables, seating, tray systems, signage, and accessible provision within the dining hall.

07Delivery responsibilities

Design, base preparation, production, transport, placement, assembly, connection, equipment commissioning, testing, and handover.

08Commercial boundaries

Allowances, exclusions, approvals, warranties, documentation, staff training, maintenance, relocation, and change procedures.
