Panelised Prefab Housing
Two-Storey Prefab Homes for Small Plots and Growing Households
Two-level panelised homes on a single foundation, planned around intermediate floor acoustics and stiffness, stability and anchorage, escape provision, thermal junctions, and stacked service risers.
- Planning basis
- Bedroom count, plot constraints, height rules, and approvals
- Home program
- Ground living and kitchen, upper bedrooms, bathrooms, and balconies
- Delivery model

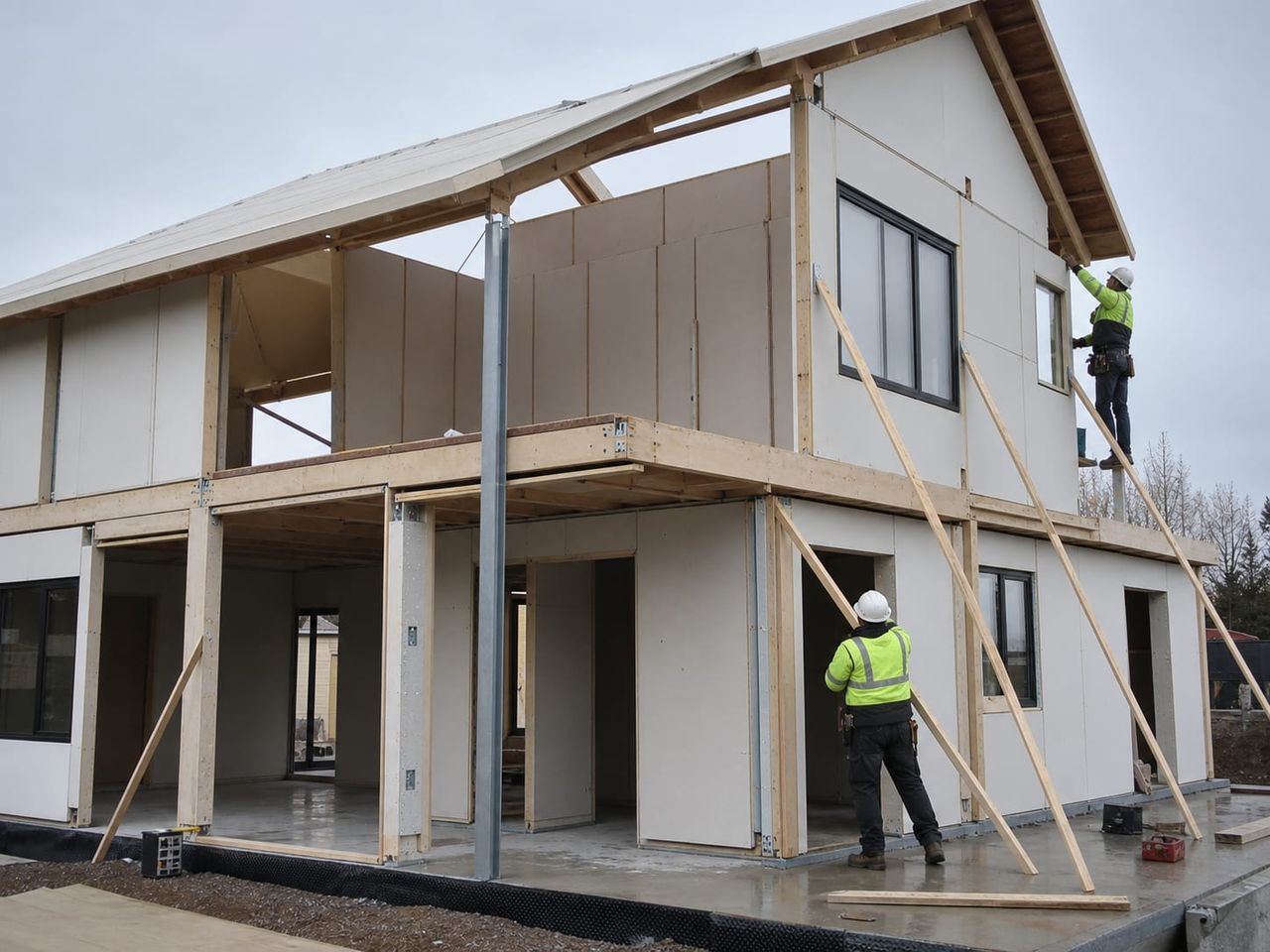

- Panel production, foundation, two-level erection, and handover

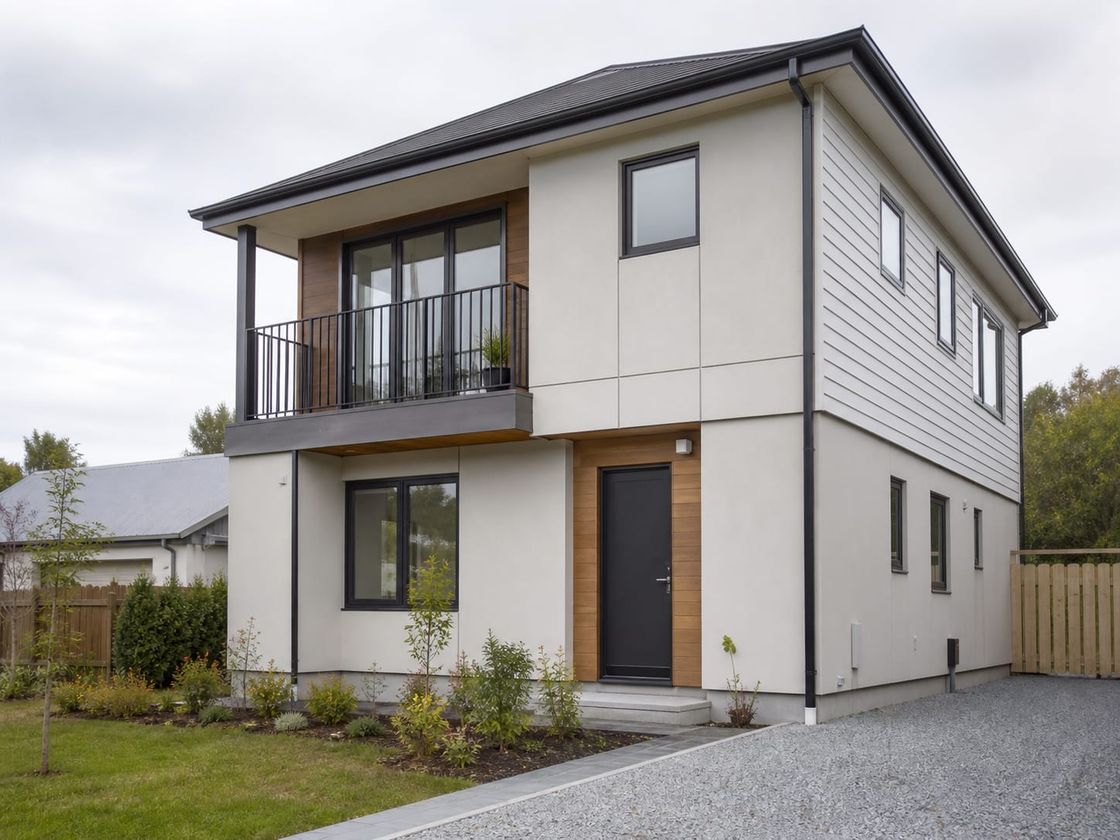

Two-Storey Prefab Homes for Small Plots and Growing Households
A two-storey prefab home stacks the accommodation so the same floor area sits on half the footprint. It suits plots where garden, parking, and setback distances matter, and households who want bedrooms placed away from the main living space.
Adding a second storey also avoids extending the foundation, the drainage runs, and the roof, which is where a large part of the cost of spreading out actually sits. What it adds instead is an intermediate floor, a staircase, and a structure that has to resist higher overturning forces.
Those three additions are where the decisions concentrate. Footfall through a lightweight floor, the floor area the stair consumes on both levels, and the verified design for wind and seismic actions at two storeys should all be settled before the layout is fixed.
Half the footprint, same area
Stacking the accommodation leaves more of the plot for garden, parking, and setback distances, which is often what makes a small site work at all.
Bedrooms away from the noise
Putting sleeping rooms on the upper level separates them from the kitchen, television, and visitors without relying on partition performance alone.
One foundation, two floors
A second storey adds floor area without extending the foundation, drainage runs, or roof, which is where much of the cost of spreading out actually sits.
Spaces Across Two Storeys
Vertical arrangement decides which rooms sit above which, where wet areas stack, where the stair lands, and how much sound travels between the two levels.
- 01
Entrance and Hall
Arrival, outdoor clothing, guest WC where the plan allows, and a stair position that does not consume the best part of the ground floor.
- 02

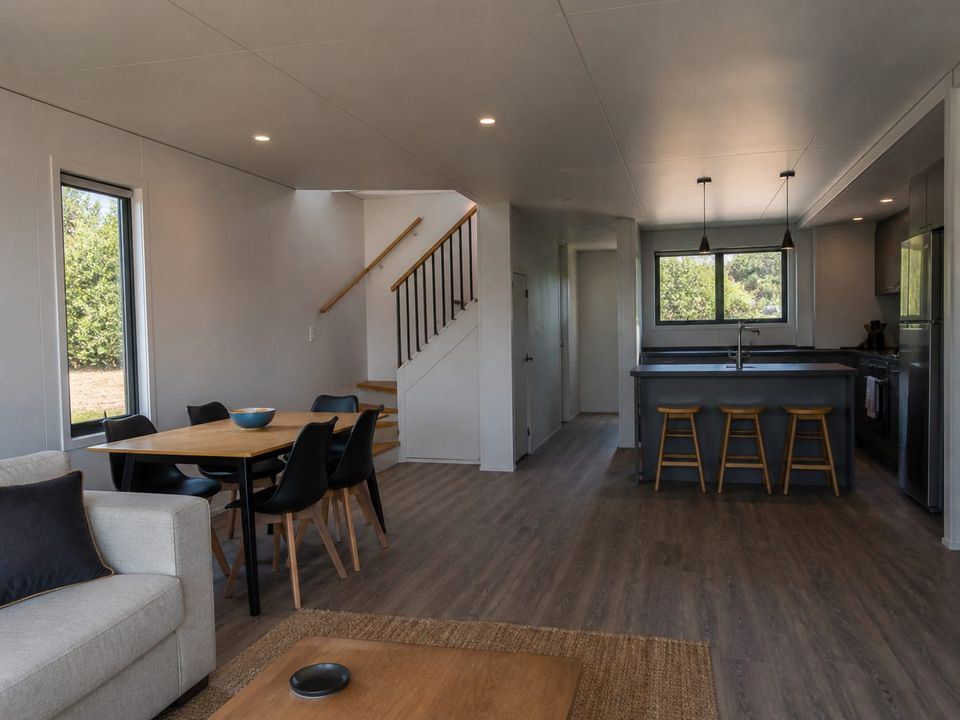

Living Room
The main gathering space, planned around daylight, outlook, heating position, and the connection to dining and the outdoor area.
- 03
Kitchen and Dining
Worktop run, storage, appliances, extraction, and the relationship between cooking, eating, and the service entrance.
- 04

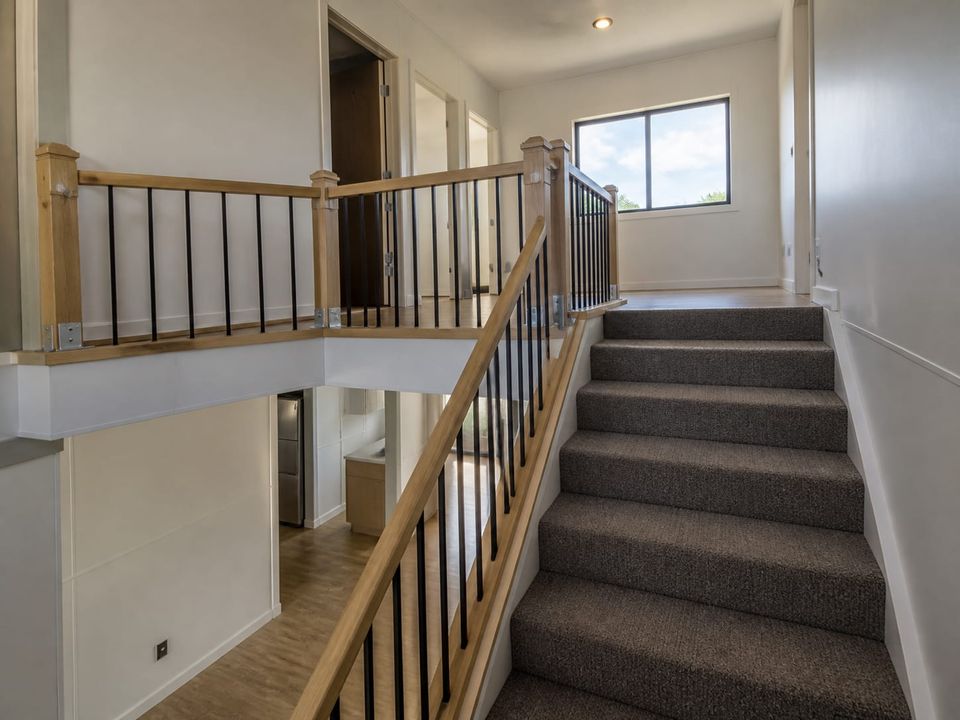

Staircase
Rise and going, headroom, width, balustrade, landing, and how much usable floor area the stair takes from each level.
- 05

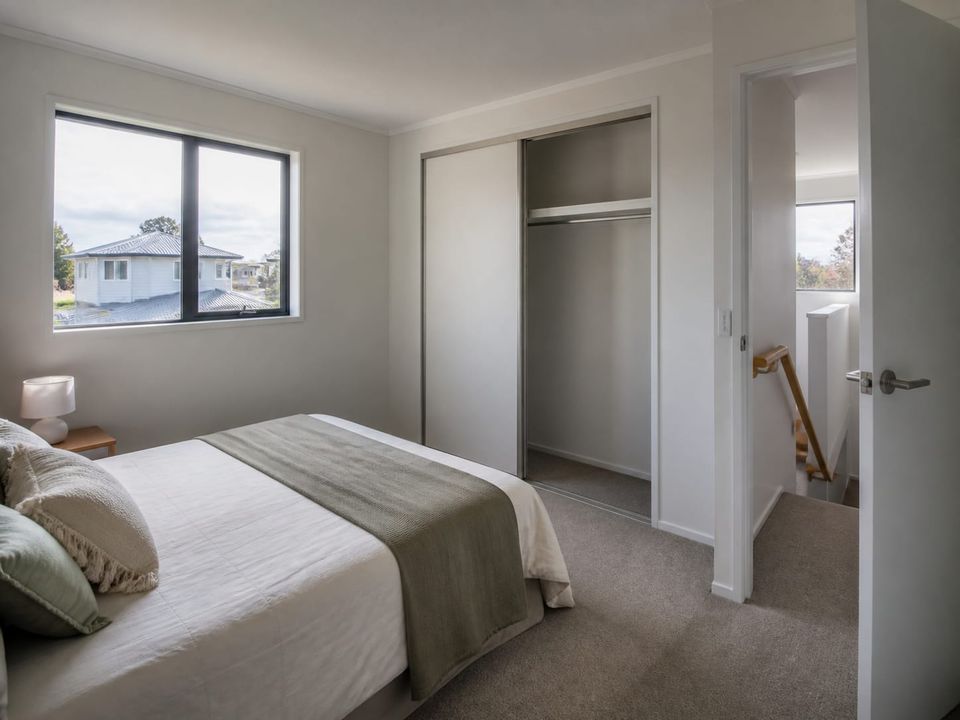

Bedrooms
Room sizes that take real furniture, wardrobe provision, glazing and blackout, ventilation, and separation from the landing.
- 06
Bathrooms
Upper and ground floor wet areas stacked where possible, with waterproofing, drainage falls, ventilation, and hot water capacity.
- 07
Balcony and Terrace
Ground terrace and upper balcony with structural support, drainage, guarding, thresholds, shading, and thermal break detailing.
- 08
Foundation and Risers
Foundation sized for two storeys, anchorage, and planned riser positions carrying water, waste, and electrical services between levels.
Settle the Floor Build-Up, the Stair, and the Riser Positions
The brief should record bedroom count, bathroom provision, living arrangement, storage, home working needs, and outdoor space, alongside any height restriction, overlooking rule, or setback that applies to the plot. These constraints usually shape the massing before the internal layout begins.
Intermediate floor performance should be specified rather than assumed. Impact sound is what households notice first and complain about longest, and it is controlled through the floor build-up, resilient layers, insulation in the void, and ceiling construction, all fixed before production.
Stiffness is a separate check from strength. A floor that satisfies load capacity can still feel springy underfoot, so joist depth, spacing, span, and stiffening should be assessed against serviceability and vibration criteria as well as structural capacity.
Riser positions are worth planning early. Stacking bathrooms and the utility keeps drainage runs short, accessible, and quiet, whereas wet areas placed independently on each floor turn drainage falls and access panel positions into constraints on both layouts.
Floor, Stability, and Envelope Together
A two-storey prefab home is judged on how the floor sounds and feels, how the structure behaves under wind and seismic load, and how well the junctions hold the envelope.
Footfall through the floor
Impact sound is the most common complaint in lightweight two-storey houses. Floor build-up, resilient layers, insulation in the void, and ceiling construction are what control it, and all are decided before production.
Floor stiffness in use
A floor can satisfy load capacity and still feel springy. Joist depth, spacing, span, and stiffening should be checked against serviceability and vibration criteria, not only against strength.
Stability and anchorage
Two storeys raise the centre of mass and increase overturning demand from wind and seismic actions. Bracing, connection continuity, and anchorage into a foundation designed for two levels all need verified design.
Escape from the upper floor
An upper storey introduces escape requirements: stair arrangement, detection coverage on both levels, window opening sizes for rescue where the code calls for them, and a clear route to a final exit.
Junctions and thermal bridging
The floor-to-wall junction, balcony connections, and the eaves are where a continuous insulation layer is hardest to maintain, and where cold spots and condensation appear first if detailing is improvised.
Service risers and access
Stacking bathrooms and running services in planned risers keeps pipework short, quiet, and reachable. Scattered wet areas turn drainage falls and access panels into the constraint on the layout.
What Shapes a Two-Storey Prefab Home Quotation?
A meaningful quotation begins with an agreed layout across both levels, structural basis, intermediate floor performance, envelope specification, services, and site responsibilities. Compare proposals on specification rather than floor area.
01Household brief
Occupants, bedroom count, bathroom provision, living arrangement, storage, home working needs, and outdoor space.
02Plot and approvals
Location, ground conditions, levels, height and setback rules, overlooking constraints, access for delivery and crane, and permits.
03Structure and foundations
Two-storey structural design, wind and seismic criteria, bracing, floor system, foundation sizing, and anchorage responsibility.
04Floor performance
Intermediate floor build-up, resilient layers, void insulation, ceiling construction, vibration criteria, and impact sound target.
05Envelope specification
Panel core and thickness, roof arrangement, junction detailing, glazing performance, shading, and external finish.
06Services and comfort
Heating and cooling across two levels, hot water capacity, ventilation strategy, electrical distribution, and drainage risers.
07Delivery responsibilities
Design, foundations, transport, crane, erection, envelope completion, balconies, service connections, testing, and handover.
08Commercial boundaries
Allowances, exclusions, approvals, warranties, documentation, maintenance guidance, and change procedures after order.
Build a clear, comparable project scope.
